Automatic Capsule Counting Lines


FOB Price:                    US$ 76000/Set 1 Set(Min.Order)

  • Jvan Pack

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Automatic Bottle Unscrambler

 Model BPL-200 Automatic Bottle Unscrambler
Bottle Size 15-500ml
Production Capacity (depending on bottles) max 200 bpm, speed is adjustable
Voltage 220V
Power 500W
Air Consumption 0.05 m³/h
Air Pressure 0.5 Mpa
Noise ＜70dB
Dimension (L*W*H) 1000x1510x1200mm
Weight 350KG

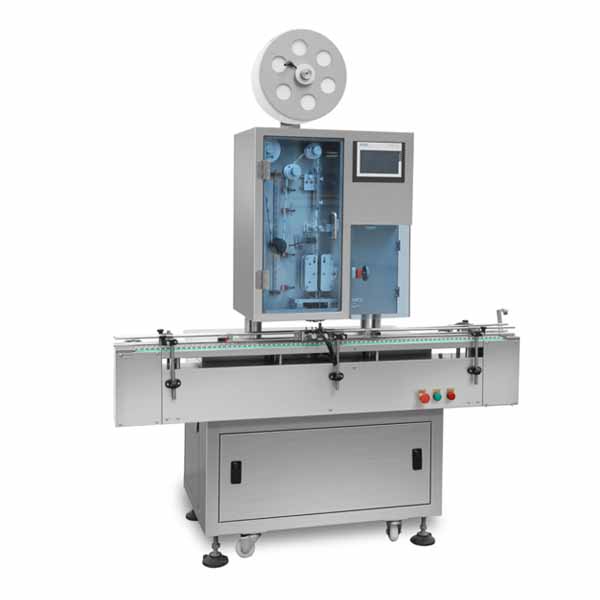

Automatic desiccant inserting machine


 Model BPG-200 Automatic desiccant inserting machine
Bottle Volume Within 350ml
Specification of Desiccant Roller O.D. ≤ 300mm, I.D. is 75mm, roller thickness  about 90-140mm
Capacity Max 130 bpm (depends on packaging materials), with variable speed
Voltage 220V
Frequency 50HZ
Air Pressure 0.5Mpa

Air Consumption

 0.1m³/h
Total power 0.5KW
Dimension(LxWxH) 1600x750x2000mm
Net Weight 300KG

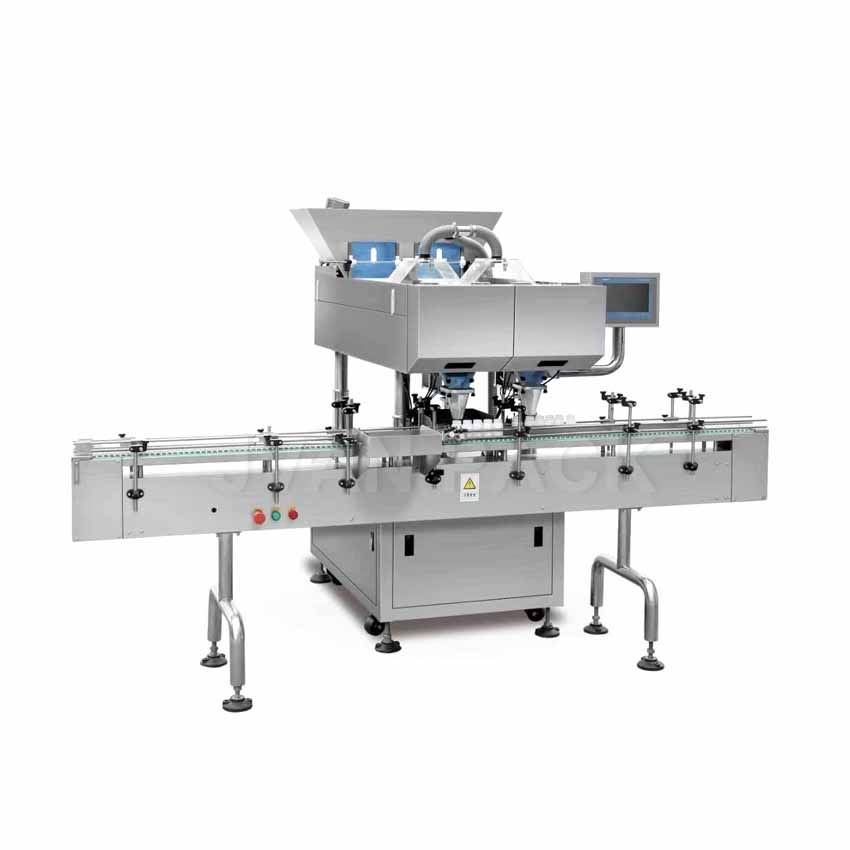

Electrical counting machine

 Model

BPS-D16 Electrical counting machine

Capacity

12000 pcs/min, depending on bottle size and filled qty

Quantity per bottle

1-9999 pcs

Applied drug size

Tablets diameter 3-23mm, capsule size 1-5#, pills diameter 2-12mm

Bottle size(ml)

Within 500ml

Voltage/frequency(V/Hz)

One phase, AC 220V, 50/60Hz

Power

1200w

Air consumptio

0.4(m³/h)

Air pressure

 0.6Mpa

Dimension

2200×1600×1700mm (height is adjustable)

Weight

 650KG

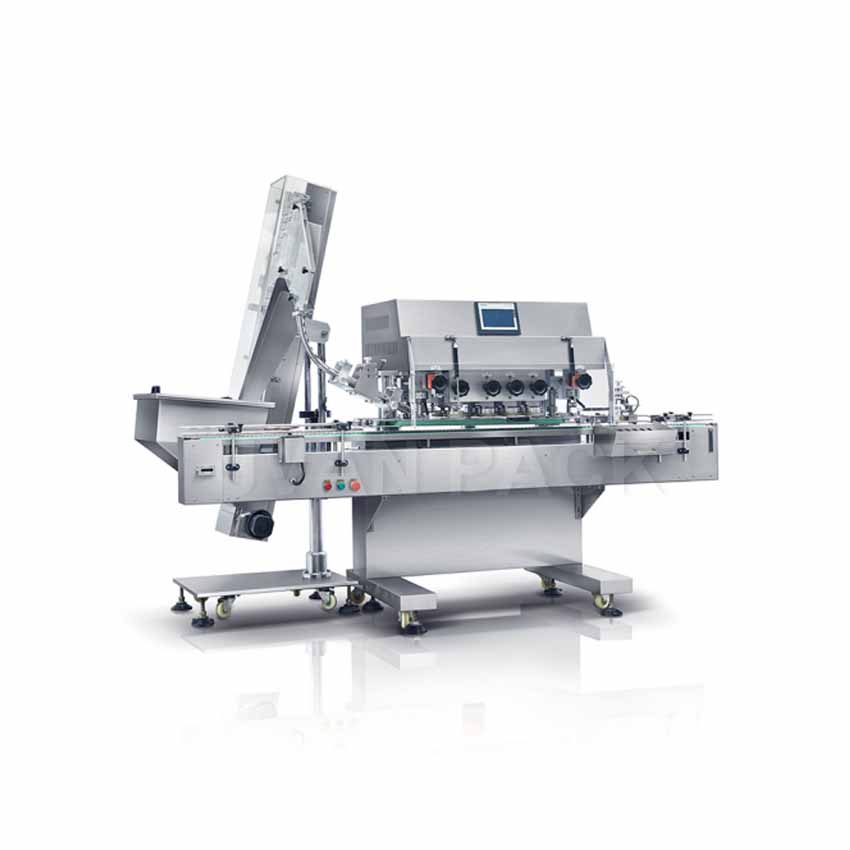

Automatic Capping Machine

 Model BDX-200 Automatic Capping Machine
Capacity

Max 180 bpm (depending on packaging material), the speed is adjustable

Bottle size: O.D./Height

Φ23－Φ100/45-210mm

Cap O.D.

Φ20－Φ65mm

Voltage/Frequency

220V   50Hz

Air Pressure

0.5Mpa

Air Consumption

 0.05(m³/h)
Power

1.75kw

Dimension

2600×1200×1700 mm(lifting height 2000)
Weight

500kg

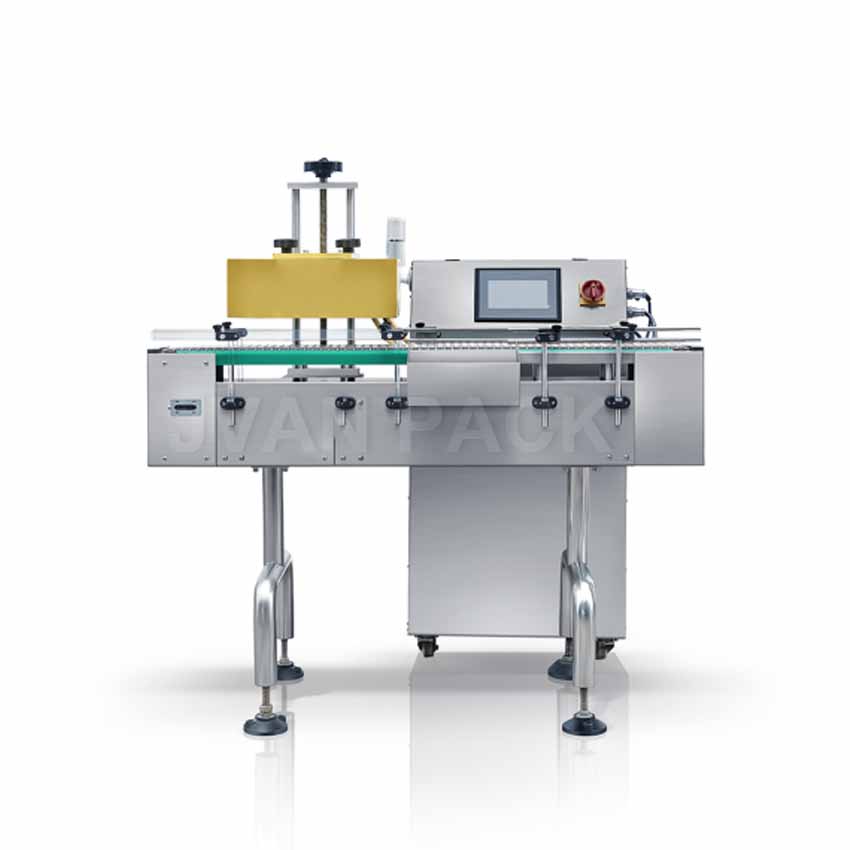

Aluminum foil sealing machine

 Model

BPF-200 Aluminum foil sealing machine（air-cooled）

Input Power

110~220V±10%   50/60Hz
Input Current

Static state≤3.5A, dynamic state≤10A

Output Power

Adjustable, Max 2.5KW

Output Waveform

Sine wave, 60 ~ 80KHz

Protection Degrees

IP21

Sealing Speed for Reference

120-200bpm（eg. Test with Polyethylene bottles with bottle neck ø34mm, bottle body O.D. ø40mm）
Sealing Diameter of Heating Head

ø20mm～ø80mm

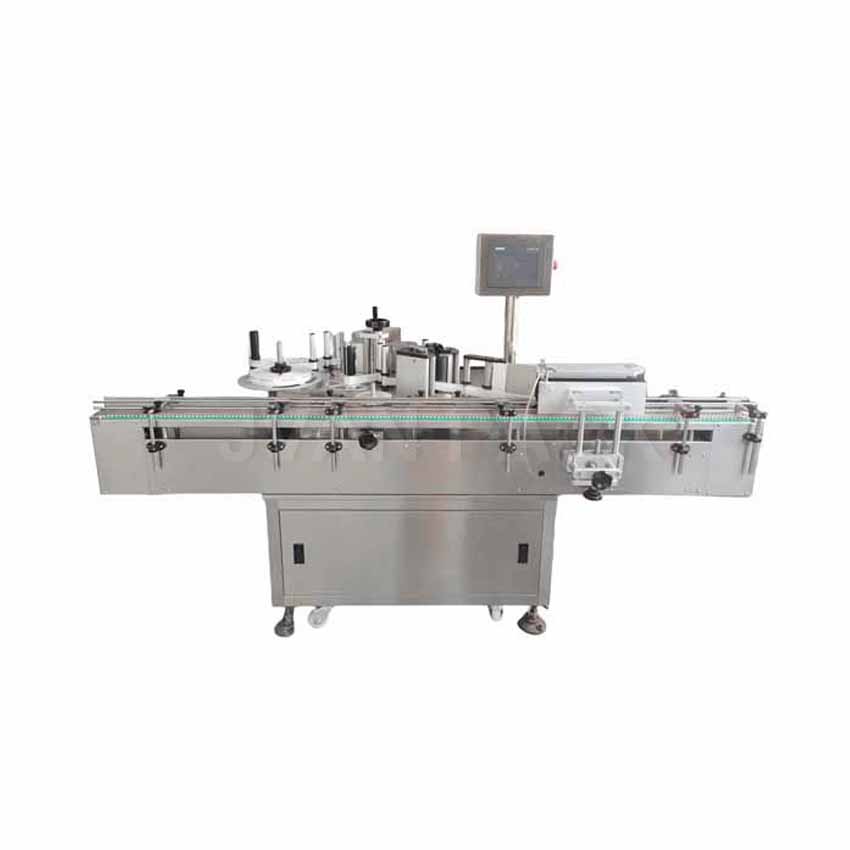

Automatic Labeling Machine

 Model BPT-200 Automatic Labeling Machine(for round bottles)
Labeling Capacity Max. 200BPM (depending on bottle size and label length)
Power 1500W
Voltage/Frequency 220V   50HZ
Ambient Temperature 0～50℃
Ambient Humidity 15～90%
Applied Bottle Size Within 15-300ml
Air Consumption 0.1(m³/h)
Air Pressure 0.5MPa
Dimension (LxWxH) 2000x1200x1650mm
Weight 250Kg
