MT-805 Semi Automatic 360° Wrap Around Labeling Machine

After-sales Service:      Online&Video Support Service
Warranty:                       1 Year
Type:                               360° Wrap Around Labeling Machine
Automatic Grade:         Semi Automatic
Application:                   Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products...
FOB Price:                      US$ 2299/Set
  • MT-805

  • Jvan Pack

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


XL-T805-1
Model MT-805
Voltage 110-220V  50/60HZ
Power 1200W
Labeling Speed 15-20 Bottles/Min
Labeling Accuracy ± 1mm
Applicable Product     L: 20mm-200mm;  W: 20mm-180mm;  H: 5mm-130mm
Applicable Label L: 15-300mm  W: 25-160mm
Max. Label Roll Out Diameter ≤φ260mm
Max. Label Roll Inner Diameter φ76mm
Machine Size 843*759*859mm
Machine Weight 70KG

Workshop Photos:

MT-805 labeling machine-1 MT-805 labeling machine-2 MT-805 labeling machine


Apply 360° rolling labeling method, to achieve on the plane of various workpieces labeling, such as cosmetics flat bottles, square bottles, hexagonal bottles, prismatic botties labeling etc.

Modifying the labeling head, can be used for labeling on uneven surface, such as prism surface, arc surface labeling etc. Mould is
customized to suit for various irregular workpieces labeling.

Optional ribbon coding machine and hot stamp printer, can be added to the labeler head, can print MFG,EXP and LOT on labels at the same time while labeling.

XL-T805-2






XL-T805-3

Touch Screen

Control machine and Set parameters here.

Label Tray
Aluminium alloy Acrylics.
Place the label roll, the tray roll to send the label out.


XL-T805-4

XL-T805-5

Label Sensor

Datasensor(Italy).
Detect the label to control the label be peeled one by one.


Strengthening Device

Rubber Rod/High-density foam.
Make label stick tighter.

XL-T805-6

XL-T805-7

Mould

> Customized as per samples.


Electric Box

Metal plate.
Place electronic configurations like power, PLC, relay, motor driver, gas valve.

XL-T805-8

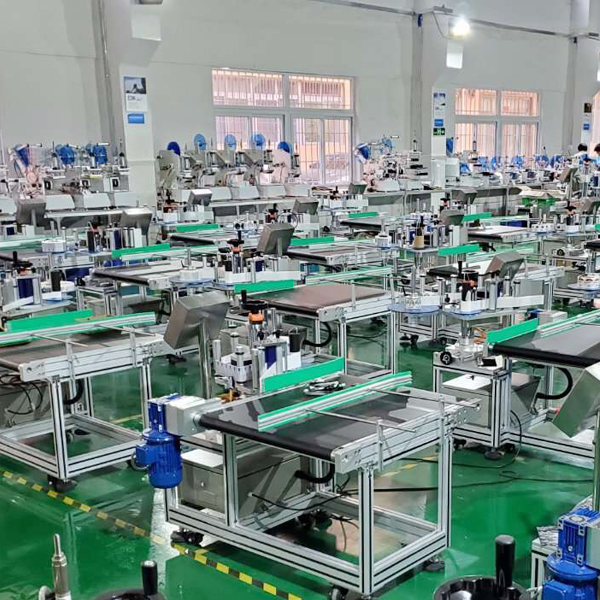

WORKSHOP PHOTO:

MT-805 labeling machine-2  MT-805 labeling machine-1  MT-805 labeling machine


Why Choose Jvan Pack:

XL-T805-10


MT-200B-11


company profilie

Wenzhou Jvan Machinery Co.,Ltd located in Wenzhou city, Zhejiang province, China. We have more than ten years of experience in packaging machinery, specialized in bottle filling and capping lines for food and cosmetics industry. Our product exported to more than 80 countries regions around the world and we have agent in Thailand, Greece, Slovakia and Malaysia. Good service has won strong support and trust from customers.

We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as rich design and production experience, with high-quality equipment and comprehensive after-sales service, has become the core enterpris of the professional packing machinery company. Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide you most effective solutions and get back to you in time.
