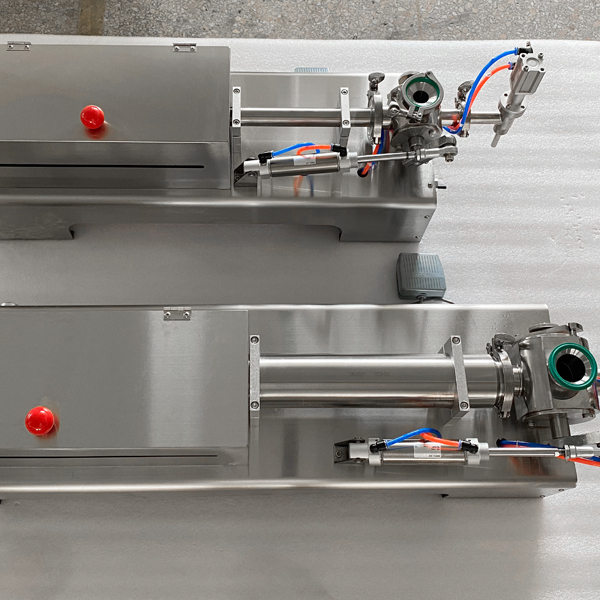

G1WGD Semi Automatic Horizontal Paste Bottle Filling Machine

This volumetric piston filling machine can fill a variety of thick or chunky liquid products into bottles or containers. Ideal for startups, medium-volume production lines, and businesses looking to upgrade from manual filling, it is small in size and easy to operate. Its food-safe construction makes this a popular solution for handling beverages, cosmetic creams, salsas, oils, lotions, pastes, and much more.
  • G1WGD

  • Jvan Pack

  • $559-1021/Set(Price based on filling volume)

Filling Volume:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ModelG1WGD
Voltage110-220V   50/60Hz
Air Pressure0.5-0.7MPa
Filling Speed5-20 B/Min
Filling Volume10-5000ml(optional)
Filling Accuracy±1% (Based on 1000ml water)
Material Contact Part/Machine Body 304SS
Required Air Compressor≥7.5kw 200L (Electricity and air source both required)
Machine Size1310(L)*380(W)*580(H)mm





Hopper


> Equipped with 30L large filling hopper which is more convenient to pour filling material. Multiple functions can be customized like mixing and heating function, if you need this please contact us.
KQ9A7531 拷贝-2
KQ9A7535 拷贝-1




Filling Nozzle


> Equipped with pneumatic filling nozzle, changable for different size.



Adjustment Button


> The filling speed and waiting time can be adjusted, rotate knobs clockwise to slow down working speed. lf you use the automatic working mode, please lengthen the waiting time to make the machine works better.
KQ9A7532 拷贝-3
KQ9A7537 拷贝-1





Cylinder


> SMC with high quality.

Filling Method


> You can control our filling machine in two ways. In pedal mode, each time you press the foot pedal, the piston goes back and forth once and fills once at the filling amount you set. In automatic mode, the piston fills back and forth continuously. You can easily adjust the time setting by closing and opening the air inlet. In this way, for example, you can have it automatically refill every 3 seconds or every 5 seconds.

G1wgd-Volumetric-Piston-Lip-Gloss-Filler-Machine-Edible-Oil-Paint-Shampoo-Grease-Ointment-Cream-Paste-Bottle-Filling-Machine.webp



This machine is used for filling various paste materials such as edible oil and detergent. It has the advantages of high precision filling machine and small size of the machine. The part in contact with the material is made of 304 material, which can meet the requirements of food grade and is widely used in various daily filling scenarios.

G1wgd-6


G1wgd-7


company profilie

Wenzhou Jvan Machinery Co.,Ltd located in Wenzhou city, Zhejiang province, China. We havemore than ten years of experience in packaging machinery, specialized in bottle filling and cappingines for food and cosmetics industry, Our product exported to more than 80 countries regions aroundthe world and we have agent in Thailand, Greece, Slovakia and Malaysia, Good service has wonstrong support and trust from customers.

We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as richdesign and production experience, with high-quality equipment and comprehensive after-sales service.has become the core enterpris of the professional packing machinery company, Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide youmost effective solutions and get back to you in time.
