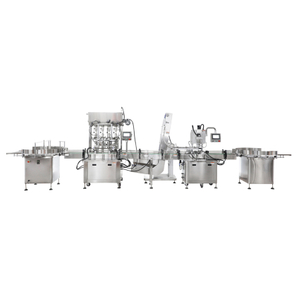

Liquid filling line

After-sales Service:      Online&Video Support Service
Warranty:                      1 Year
Packaging:                     Bottles Filling Capping and Labeling Machine
Automatic Grade:        Automatic
Application:                  Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products...
FOB Price:                     US$ 12999/Set
  • Filling Line

  • Jvan Pack

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Voltage110-220V   50/60HZ
Motor Power1200W
Air Pressure0.6-0.8MPa
Filling Speed1000-1200 Bottles/Hour
Filling Volume100-1000ml (can be adjustment )
Filling Accuracy±1% (Based on 1000ml water)
Material Contact Part/Machine Body 304SS
Conveyor Length6M(Each Machine With 2M)
Machine Size7500(L)*1050(W)*1650(H)mm


>The turntable structure is made of high quality stainless steel which is durable. It can be connected to the complete production line.

Liquid-filling-line-1

Liquid-filling-line-2

PLC Control Panel
>Components: touch screen, power switch, start switch, emergency stop switch.
>The parameters of the machine can be easily adjusted through the touch screen.


PLC Control Panel
>Components: touch screen, power switch, start switch, emergency stop switch.
>The parameters of the machine can be easily adjusted through the touch screen.


Liquid-filling-line-3

Liquid-filling-line-4

Capping Chuck
> Suitable for different size bottles.The capping time, pressing time can be adjusted by operation panel.


Bottle Electric Eye On Capping Machine

>It can detect the bottle once the bottle pass by, prevent from missing bottles and ensure the production quality.

Liquid-filling-line-5

Liquid-filling-line-6

Bottle Sensor On Labeling Machine

> High sensitivity sensor, it can detect the object when it pass by.
> Make labeling more accurate.


Label Sensor

> Leuze electronic sensor, detect the label to control the label be peeled one by one.
> It for normal label, transparent label needs to be replaced the sensor.


Liquid-filling-line-7

Liquid-filling-line-8

>Joint parts for the conveyors between two machines.

>Joint parts for the conveyors between two machines.

Liquid-filling-line-9


WORKSHOP PHOTO

Liquid-filling-line-10

This filling line is used for filling various liquid materials such as juice, liquid sauce and low viscosity oil. It has the advantages of high precision filling machine and small size of the machine. The part in contact with the material is made of 304 material, which can meet the requirements of food grade and is widely used in various daily filling scenarios.

Liquid-filling-line-11



Liquid-filling-line-12


company profilie

Wenzhou Jvan Machinery Co.,Ltd located in Wenzhou city, Zhejiang province, China. We have more than ten years of experience in packaging machinery, specialized in bottle filling and cappingines for food and cosmetics industry. Our product exported to more than 80 countries regions around the world and we have agent in Thailand, Greece, Slovakia and Malaysia, Good service has won strong support and trust from customers.

We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as rich design and production experience, with high-quality equipment and comprehensive after-sales service, has become the core enterpris of the professional packing machinery company. Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide you most effective solutions and get back to you in time.
