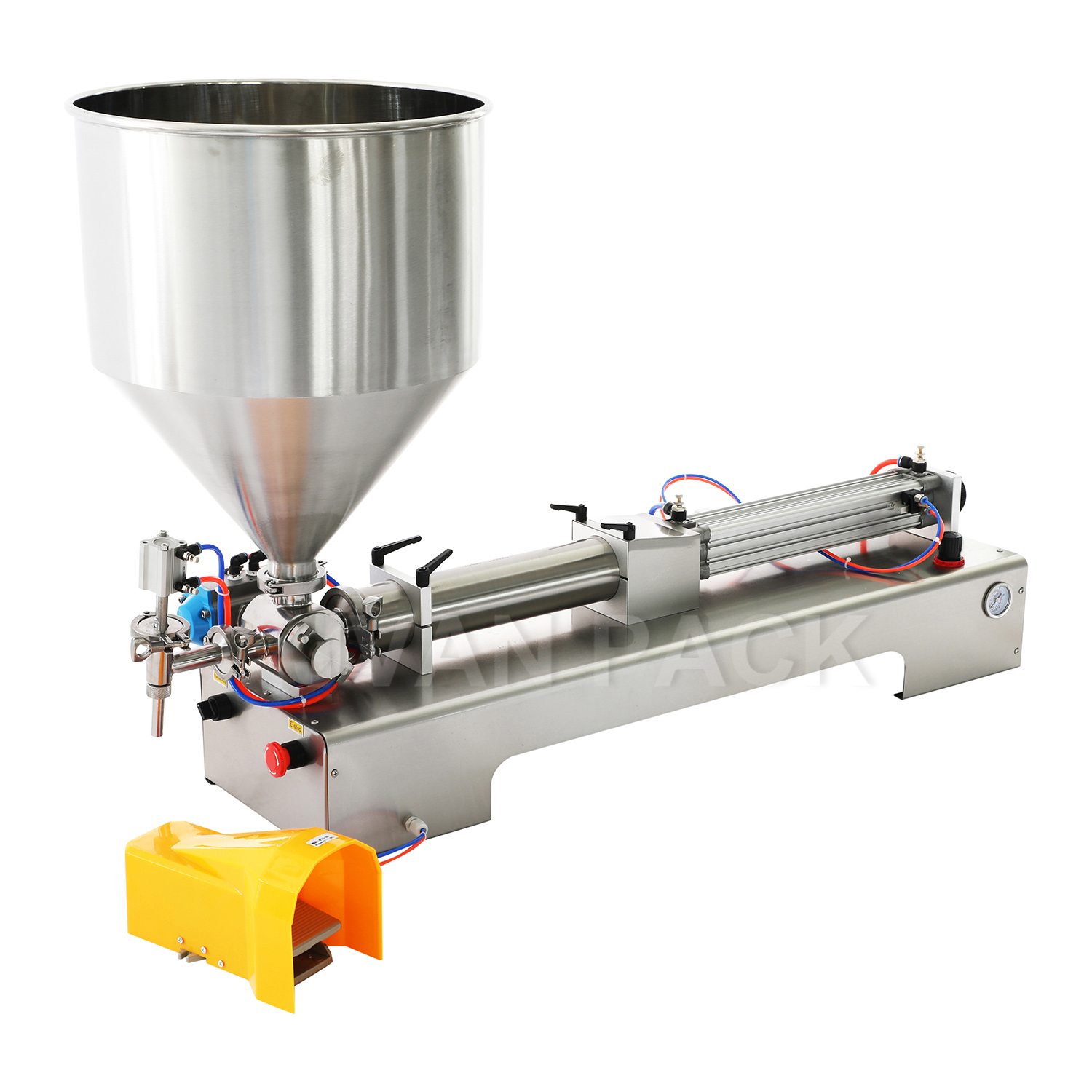

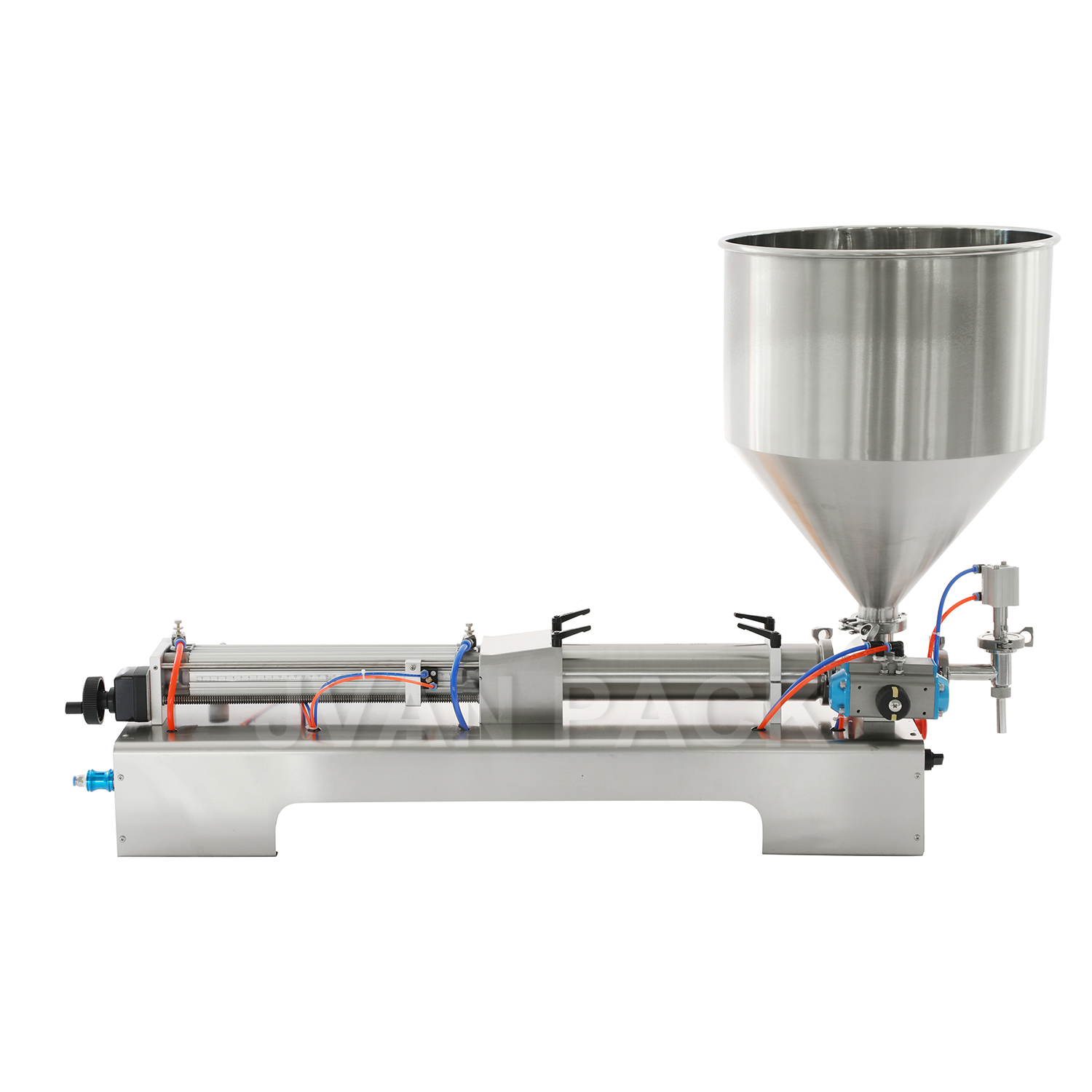

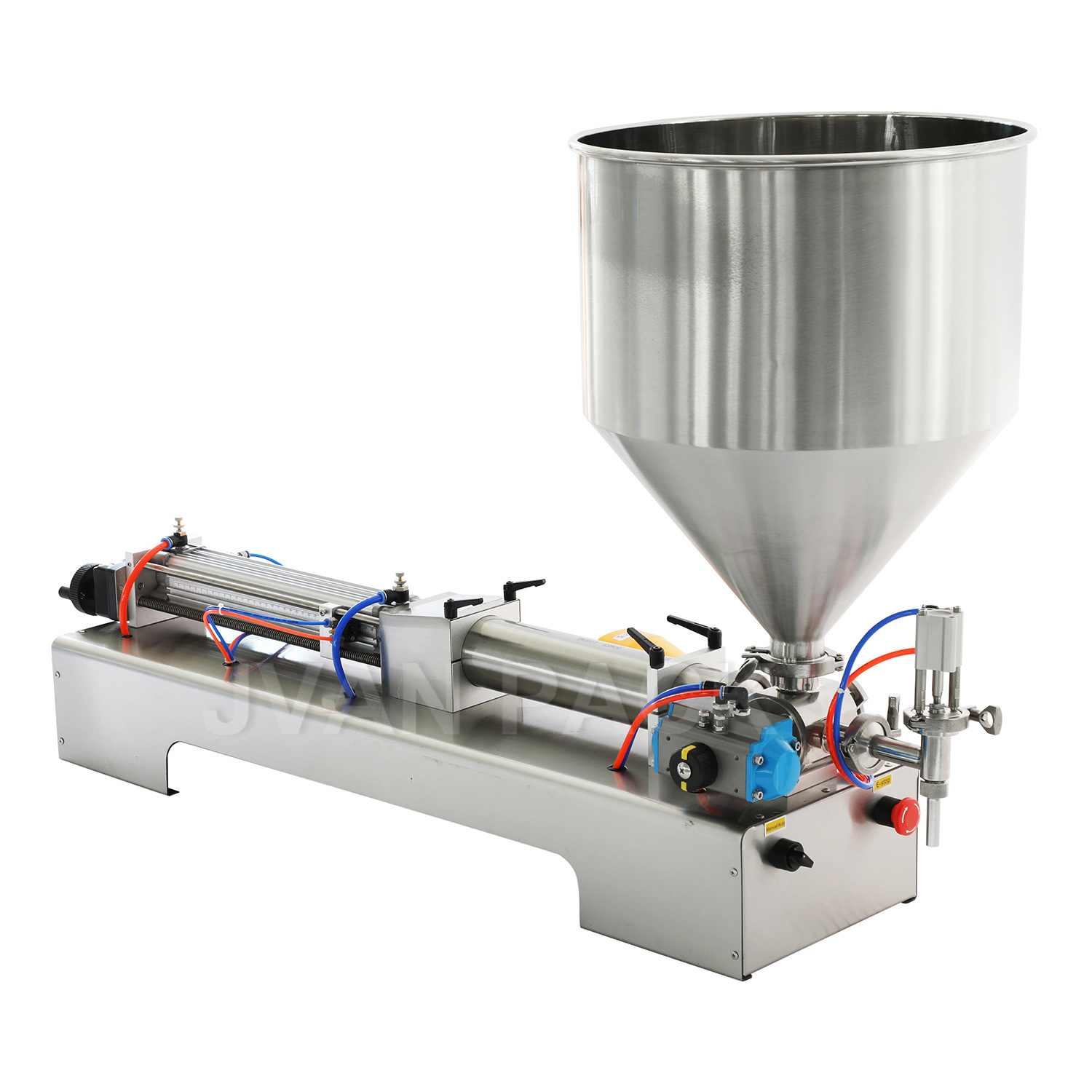

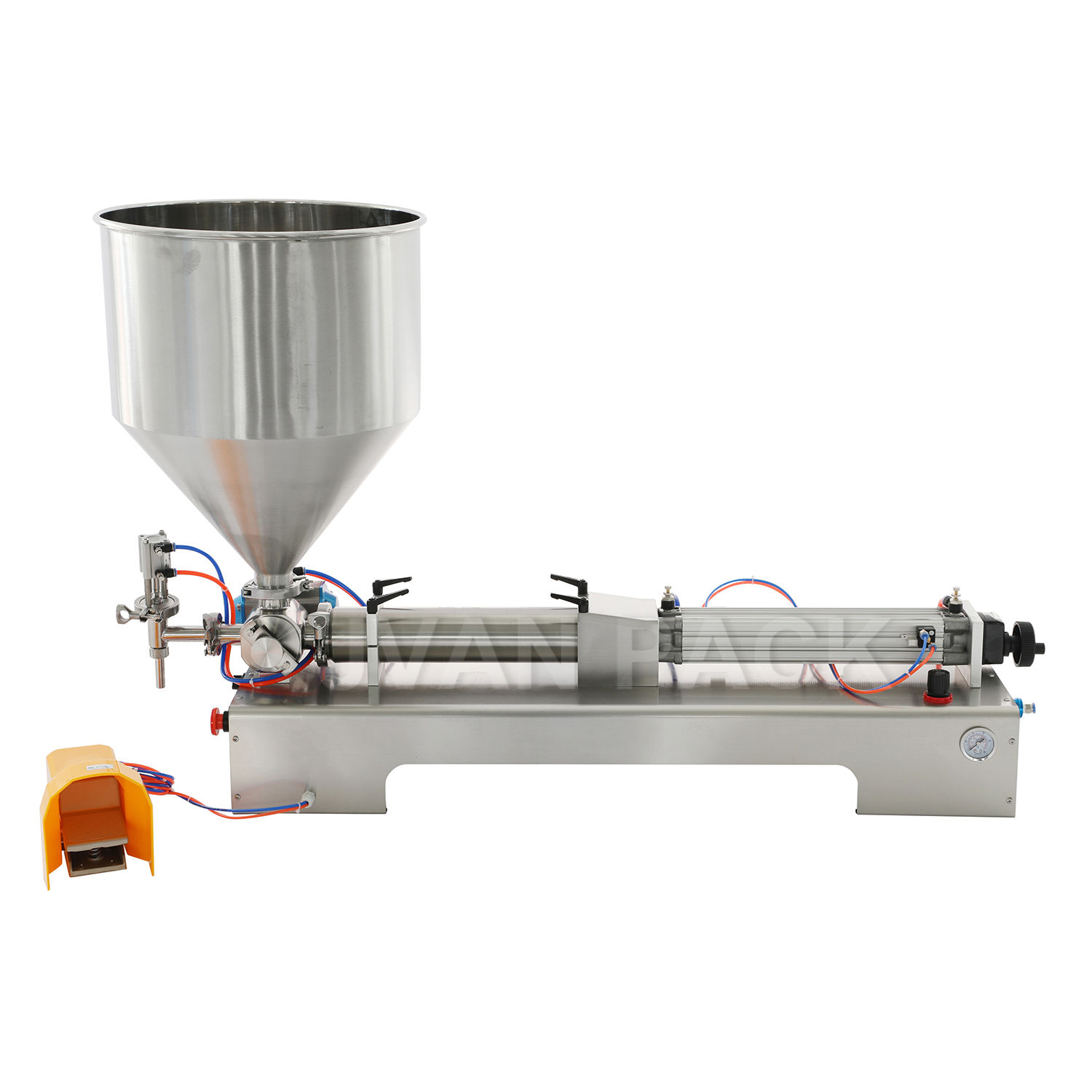

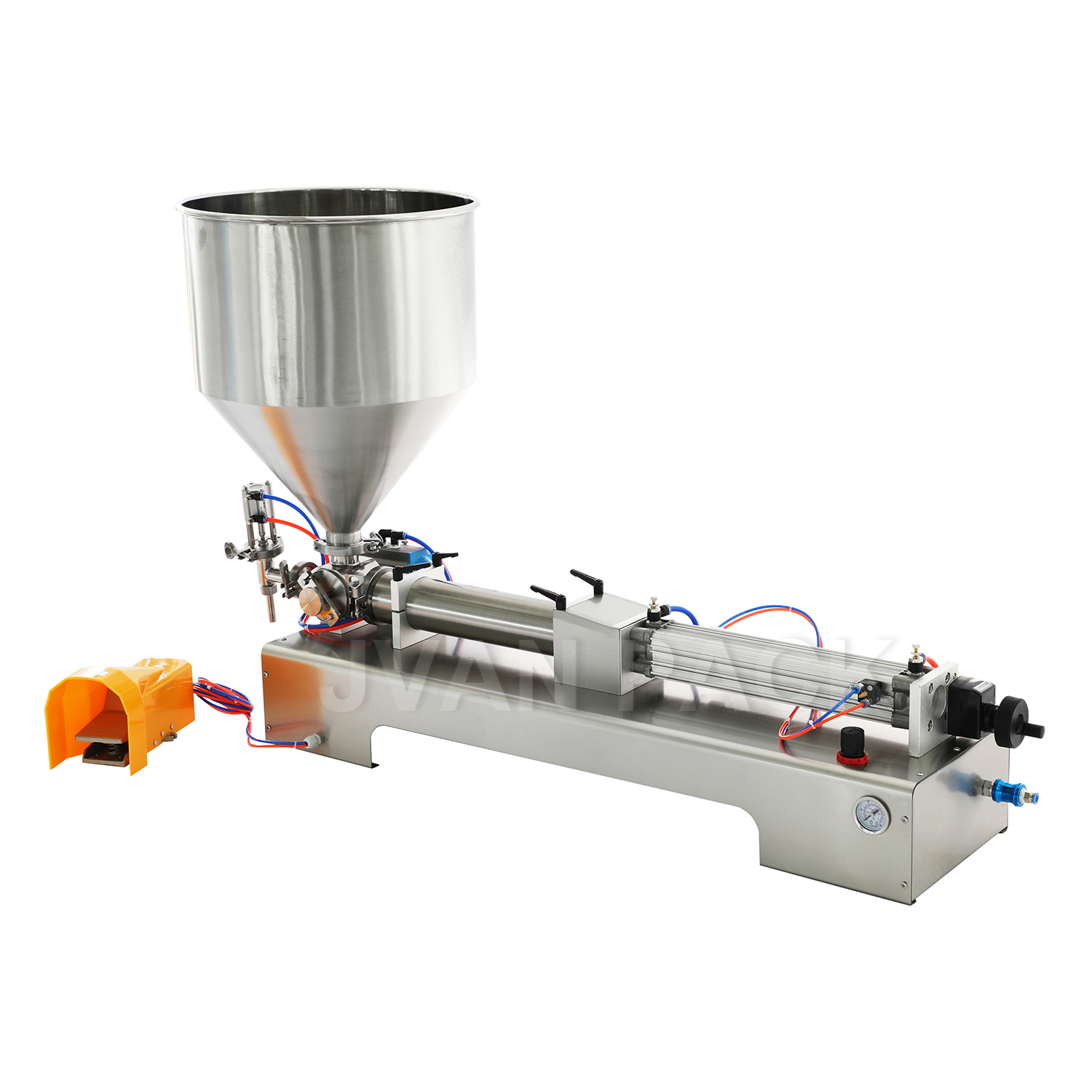

G1WGD Semi Automatic Horizontal Shampoo Cream Ketchup Cosmetic Oil Jam Lotion Honey Food Paste Filling Machine

This volumetric filling machine can be used to fill bottles or containers with highly viscous or chunky products. It combines a series of innovative features to deliver the fastest speeds with the best fill accuracy. Popular for their ease of use, these machines are highly used by industries in the food & beverage, cosmetics, personal care, agricultural, pharmaceutical, and chemical fields.
FOB Price:         US$ 557-999/Set(Price based on filling volume)
  • G1WGD

  • Jvan Pack

Filling Volume:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Model G1WGD
Voltage 110-220V  50/60HZ
Air Pressure 0.5-0.7MPa
Filling Speed 5-20 B/Min
Filling Volume 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 300-2500ml, 1000-5000ml (Optional)
Filling Accuracy ±1% (Based on 1000ml water)
Package Size 1250*400*380mm    520*500*800mm
Package Weight 40KG

 Workshop Photos:

Filling Machine-1 Filling Machine-1 Filling Machine



Hopper


> Equipped with 30L large filling hopper which is more convenient to pour filling material. Multiple functions can be customized like mixing and heating function, if you need this please contact us.
KQ9A7531 拷贝-2
detailed photo




Filling Nozzle


> Equipped with pneumatic filling nozzle, changable for different size.





Cylinder


> SMC with high quality.


KQ9A7537 拷贝-1

detailed photo-1

Filling Method


> You can control our filling machine in two ways. In pedal mode, each time you press the foot pedal, the piston goes back and forth once and fills once at the filling amount you set. In automatic mode, the piston fills back and forth continuously. You can easily adjust the time setting by closing and opening the air inlet. In this way, for example, you can have it automatically refill every 3 seconds or every 5 seconds.




This machine is used for filling various paste materials such as edible oil and detergent. It has the advantages of high precision filling machine and small size of the machine. The part in contact with the material is made of 304 material, which can meet the requirements of food grade and is widely used in various daily filling scenarios.

G1wgd-6


G1wgd-7


company profilie

Wenzhou Jvan Machinery Co.,Ltd located in Wenzhou city, Zhejiang province, China. We havemore than ten years of experience in packaging machinery, specialized in bottle filling and cappingines for food and cosmetics industry, Our product exported to more than 80 countries regions aroundthe world and we have agent in Thailand, Greece, Slovakia and Malaysia, Good service has wonstrong support and trust from customers.

We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as richdesign and production experience, with high-quality equipment and comprehensive after-sales service.has become the core enterpris of the professional packing machinery company, Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide youmost effective solutions and get back to you in time.
