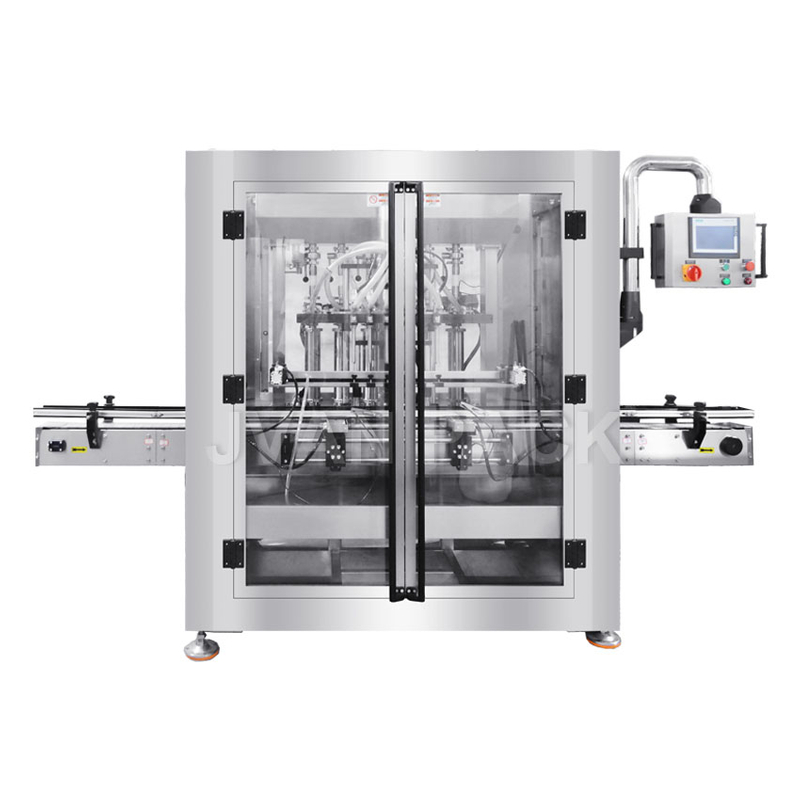

GT6T-6G(R) Automatic 6 Head Paste Servo Filling Machine
This complete high-precision automatic piston filling system measures and dispenses to viscous liquid and paste with great speed and accuracy. Equipped with Six inline dispensing nozzles and an infeed conveyor, this machine is ideal for medium to high-volume production settings where speed and consistency are essential. These automated systems are often used by a wide variety of industries to package sauces, juices, oils, nutraceuticals, chemicals, creams, paints, dressings, syrups, and much more!
Machine Price: US $ 10500/Set
-
GT6T-6G(R)
-
Jvan Pack
| Quantity: | |
|---|---|
| PDF Export | |
| Model | GT6T-6G(R) |
| Voltage | 110-220V 50/60Hz |
| Air Pressure | 0.6-0.8MPa |
| Filling Speed | 20-35B/Min(Based on 100-500ml) |
| Filling Volume | 50-1000ml(Optional ) |
| Filling Accuracy | ±1% (Based on 1000ml water) |
| Filling Head | 6 |
| Machine Size | 1850*1150*2160mm |
| Machine Weight | 700KG |
High Quality From The Details:
Internal parts are coded and recorded in the document, main parts are highly replaceable. Adopts the high quality components that produced by internationally renowned brand companies that can ensure high efficiency and stability.
| Image | Component Name | Brand | Image | Component Name | Brand |
 | Touch Screen |  |  | Photoelectric System |  |
 | PLC |  |  | Contactor |  |
 | Solenoid Valve |  |  | Servo System |  |
 | Air cylinder |  |  | Switch | |
 | Film-Stroking Chains |  |  | Bearing |  |
 | Speed Reducer |  |  | Relays and Proximity Switch |  |
