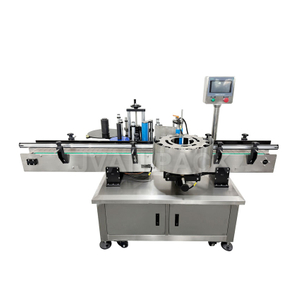

MT-200C Automatic Round Bottle Positioning Labeling Machine

As a fully complete automatic labeling solution, it’s designed to apply one partial or wraparound label on round containers specifically.
Equipped with ouchscreen HMI, adjustable guide rails, speed adjustable module, and conveyor, you’ll have everything you need to automate your labeling process. The adaptable structure is designed to be integrated onto existing production lines or to work as self-contained standalone units.
  • MT-200C

  • Jvan Pack

  • US$ 3500/Set

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model MT-200C
Voltage 110-220V   50/60Hz
Labeling Speed 10-30 Bottles/Min
Labeling Accuracy ±1mm
Bottle Diameter  30-100mm
Applicable Label L: 30-200mm  W: 20-150mm
Max. Label Roll Out Diameter φ260mm
Max. Label Roll Inner Diameter φ75mm
Machine Size 2000*800*1400mm
Machine Weight 150KG

Workshop Photo:

MT-200C-8





Bottle holding type automatic labeling machine suitable for surface of the round bottle labeling, can do single label and double labels, the label position can be adjusted easily between front and back labels, widely used in cosmetics, food, medicine, disinfectant and other industries. Great improve label speed and labeling quality.

MT-200C-2

MT-200C-22

Bottle Separating Device

> Bottles on the conveying line come one by one and are labeled orderly after being separated.

Label Sensor

>D etect the label to control the label be peeled one by one.
> It for normal label, transparent label needs to be replaced the sensor.

MT-200C-3

MT-200C-4

Bottle Sensor

> High sensitivity sensor, it can detect the object when it pass by.
> Make labeling more accurate.


Motor Drive
Make the machine working fully electric.

MT-200C-5

MT-200C-6

Speed Controller

> 1. For the conveyor.
> 2. For the bottle separating device.
> 3. For the bottle roller.


MT-200C-7




MT-200C-9

company profilie

Wenzhou Jvan Machinery Co.,Ltd located in Wenzhou city, Zhejiang province, China. We have more than ten years of experience in packaging machinery, specialized in bottle filling and capping lines for food and cosmetics industry. Our product exported to more than 80 countries regions around the world and we have agent in Thailand, Greece, Slovakia and Malaysia. Good service has won strong support and trust from customers.

We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as rich design and production experience, with high-quality equipment and comprehensive after-sales service, has become the core enterpris of the professional packing machinery company. Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide you most effective solutions and get back to you in time.
