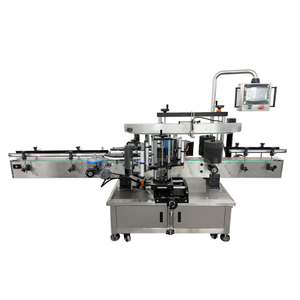

MT-806 Semi Automatic Double Sides Labeling Machine

After-sales Service:       Online&Video Support Service
Warranty:                       1 Year
Type:                                Double Sides Labeling Machine
Automatic Grade:          Semi Automatic
Application:                    Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products...
FOB Price:                       US$ 4600/Set
  • MT-806

  • Jvan Pack

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model MT-806
Voltage 220V/50-60HZ
Power 660W
Labeling Speed 15-30 pcs/min (according to product size)
Labeling Accuracy ±0.5mm (errors caused by product or label)
Applicable Product                                    L  50mm-350mm; W 20mm-200mm; H  50mm-400mm
Applicable Label L: 15-300mm  W: 25-175mm
Max. Label Roll Out Diameter φ280mm
Max. Label Roll Inner Diameter φ76mm
Machine Size 1328*1049*1516mm
Machine Weight 270KG

WORKSHOP PHOTO:

XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp (2) XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp (1)


XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp


Label-peeling Plate


>When the label pass the plate,the label and release paper are separated:the label stick to the bottle while the release paper keep moving.
> Meantime the strengthening device will roll to make label stick tighter.



Sensor


> Detect the label to control the label be peeled one by one.
> Not workable for transparent label.


2
XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp (1)




Transmission

> Driven by a motor, transmit product front and back while labeling, usually be customized according to your containers.





Touch Screen


> Control machine and Set parameters here


1
XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp (3)


Date Printer


> It can be equipped with a code printer and a code jet printer to print production batch number, production date, expiry date and other information, labeling, coding one step to improve production efficiency.



Apply rolling labeling method, to achieve on the side of various workpieces labeling, such as cosmetic flat bottles, packaging boxes, plastic side labeling etc.

Modifying the labeling head, can be used for labeling on uneven surface, such as concave plane, circular surface labeling etc.
Mould is customized to suit for various irregular workpieces labeling.

Optional ribbon coding machine and hot stamp printer,can be added to the labeler head,can print MFG, EXP and LOT on labels at the same time while labeling.

XL-T806-Semi-Automatic-Double-Face-Plane-Labeller-Flat-Bottle-Double-Side-Self-Adhesive-Sticker-Labeling-Machine.webp



MT-200B-11


company profilie

Wenzhou Jvan Machinery Co.,Ltd located in Wenzhou city, Zhejiang province, China. We have more than ten years of experience in packaging machinery, specialized in bottle filling and capping lines for food and cosmetics industry. Our product exported to more than 80 countries regions around the world and we have agent in Thailand, Greece, Slovakia and Malaysia. Good service has won strong support and trust from customers.

We absorb the advanced automation technology at domestic and abroad, develop new models, optimizethe standard technology, expand the company's scale, rely on continuous innovation, as well as rich design and production experience, with high-quality equipment and comprehensive after-sales service, has become the core enterpris of the professional packing machinery company. Our sales with apassionate and experlenced team, is always available to analyze your requirements and provide you most effective solutions and get back to you in time.
