MT-962R
Jvan Pack
Availability: | |
---|---|
Quantity: | |
Model | MT-962R |
Voltage | 110-220V 50/60HZ |
Labeling Speed | 10-40 Bottles/Min (according to product size) |
Labeling Accuracy | ±1mm |
Applicable Product | Height≤400mm, Thickness≤100mm |
Max Label Width | 200mm |
Max. Label Roll Out Diameter | φ350mm |
Max. Label Roll Inner Diameter | φ76mm |
Machine Size | 3050*1450*1800mm |
Machine Weight | 500KG |
Internal parts are coded and recorded in the document, main parts are highly replaceable. Adopts the high quality components that produced by internationally renowned brand companies that can ensure high efficiency and stability.
Image | Component Name | Brand | Image | Component Name | Brand |
![]() | Touch Screen | ![]() | ![]() | Photoelectric System | ![]() |
![]() | PLC | ![]() | ![]() | Contactor | ![]() |
![]() | Solenoid Valve | ![]() | ![]() | Servo System | ![]() |
![]() | Air cylinder | ![]() | ![]() | Switch | ![]() |
![]() | Film-Stroking Chains | ![]() | ![]() | Bearing | ![]() |
![]() | Speed Reducer | ![]() | ![]() | Relays and Proximity Switch | ![]() |
Model | MT-962R |
Voltage | 110-220V 50/60HZ |
Labeling Speed | 10-40 Bottles/Min (according to product size) |
Labeling Accuracy | ±1mm |
Applicable Product | Height≤400mm, Thickness≤100mm |
Max Label Width | 200mm |
Max. Label Roll Out Diameter | φ350mm |
Max. Label Roll Inner Diameter | φ76mm |
Machine Size | 3050*1450*1800mm |
Machine Weight | 500KG |
Internal parts are coded and recorded in the document, main parts are highly replaceable. Adopts the high quality components that produced by internationally renowned brand companies that can ensure high efficiency and stability.
Image | Component Name | Brand | Image | Component Name | Brand |
![]() | Touch Screen | ![]() | ![]() | Photoelectric System | ![]() |
![]() | PLC | ![]() | ![]() | Contactor | ![]() |
![]() | Solenoid Valve | ![]() | ![]() | Servo System | ![]() |
![]() | Air cylinder | ![]() | ![]() | Switch | ![]() |
![]() | Film-Stroking Chains | ![]() | ![]() | Bearing | ![]() |
![]() | Speed Reducer | ![]() | ![]() | Relays and Proximity Switch | ![]() |

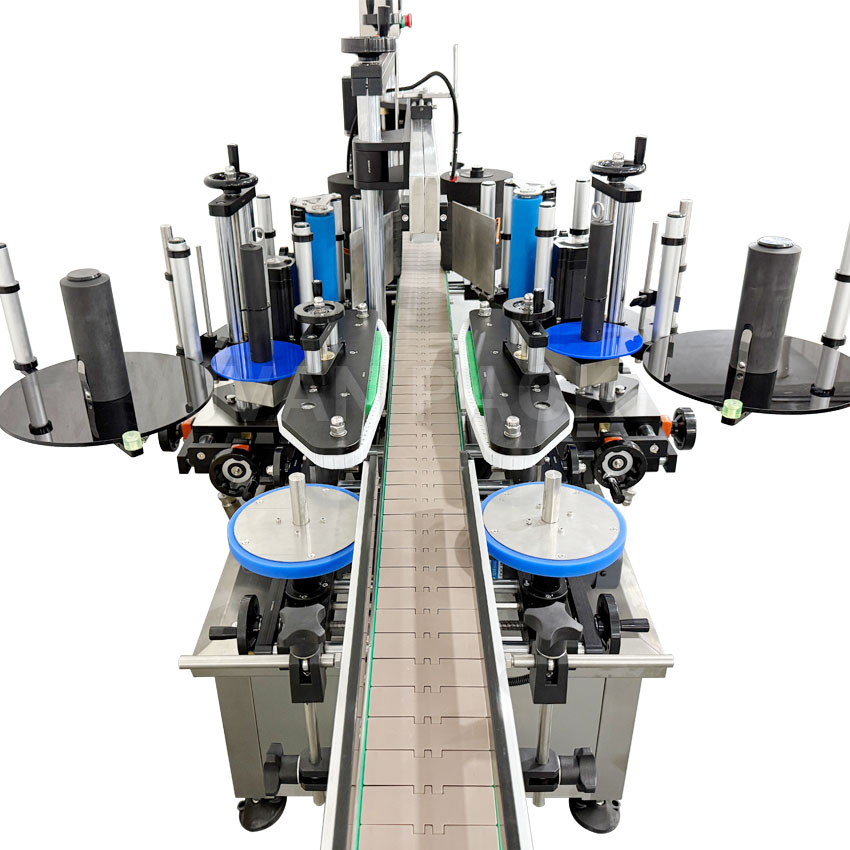

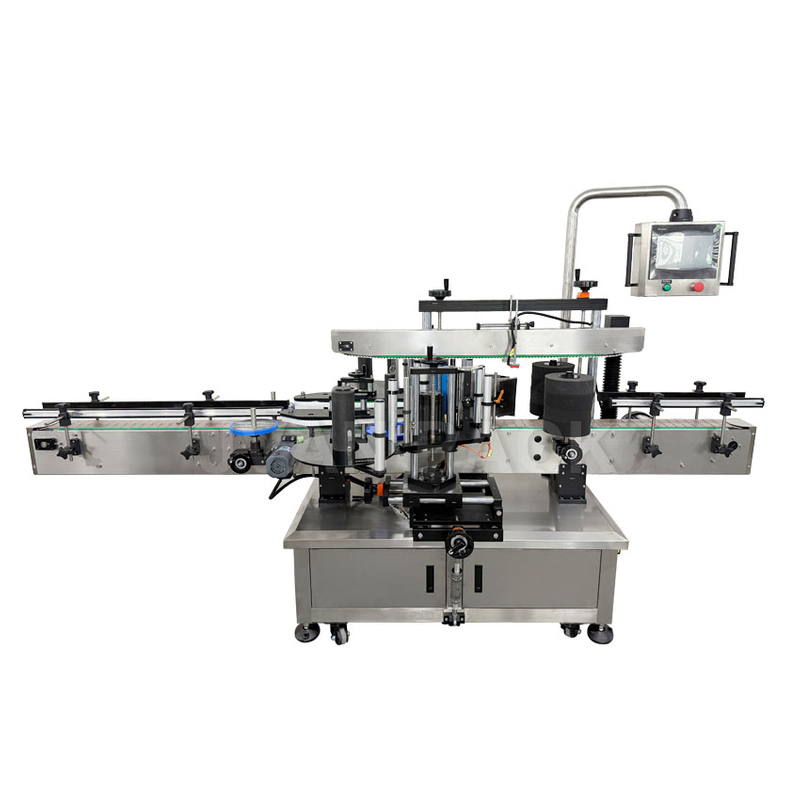

The line has two labeling mechanisms that apply the front and back labels to the packaging at the same time. The labels are placed on a roll, which is automatically unrolled and glued to the package using an adhesive tape. The line is suitable for operating with high production that need to streamline and automate the labeling process. If necessary, an inkjet printer can be built into the line, which will automatically print the expiration date or other necessary information on the label.
The labeling line for packaging of irregular shapes is used for the automated labeling of packaging for cleaning products, cosmetic packaging, ketchup, mustard, sauces, bandages, motor oil packaging and others. The advantage of this line is that it is compatible with a wide range of packaging and labels of different shapes and sizes.
The line has two labeling mechanisms that apply the front and back labels to the packaging at the same time. The labels are placed on a roll, which is automatically unrolled and glued to the package using an adhesive tape. The line is suitable for operating with high production that need to streamline and automate the labeling process. If necessary, an inkjet printer can be built into the line, which will automatically print the expiration date or other necessary information on the label.
The labeling line for packaging of irregular shapes is used for the automated labeling of packaging for cleaning products, cosmetic packaging, ketchup, mustard, sauces, bandages, motor oil packaging and others. The advantage of this line is that it is compatible with a wide range of packaging and labels of different shapes and sizes.
